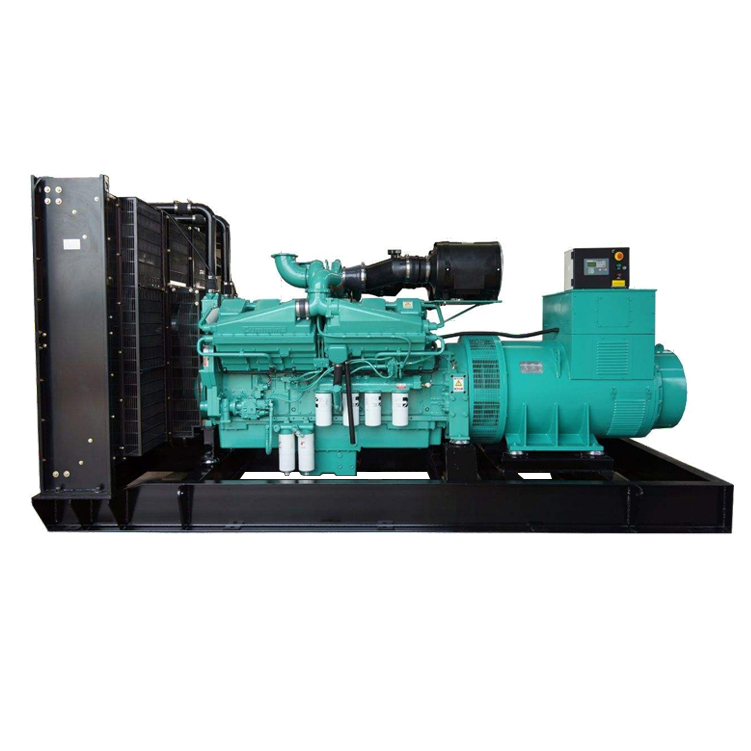

1500KW 1800KVA Cummins QSK50-G7 Diesel Engine Genset

Model

ZDCS1800-A3

Rated Power

1500KW/1800KVA

Power Factor

COSΦ=0.8

Rated Output Voltage

110V/400V/230V/450V

Rated Current

2592A

Rated Speed

1500RPM/1800RPM

Rated Frequency

50HZ /60HZ

Startup Control Mode

Electric Starting

Noise (at 1m distance)

71db(A)

Diesel Engine Model

Cummins QSK50-G7


Engine Type

60 degree Vee, 4 cycle, turbocharged, After-cooled,Cast iron, 16 cylinder  Diesel Engine

Bore and Stroke

159*159


Displacement litre

50.3 litre (3067 in.3)

Speed Governor

Electronic Speed Governors

Fuel Consumption at 100% loading

261 g/kw/h

Alternator

Stamford,Leroy-Somer,Marathon...

Phase

1 Phase /3Phase

Regulating Mode

AVR (automatic voltage regulating)

Exciter Type

Brushless,Self-exciting,100% Copper Winding Wire

Insulation Grade

H

Protection Grade

IP23

Telephone Influence Factor

≤50

Telephone Harmonic Factor

≤2%

Regulating Rate Of Steady Voltage

≤±0.5%

Regulating Rate Of Instantaneous Voltage

≤±15%

Waving Rate Of Voltage

≤0.5%

Waveform Distortion Degree Of Voltage

≤5%

Time Of Steady Voltage

≤1.5 seconds

Regulating Rate Of Steady Frequency

≤±2%

Regulating Rate Of Instantaneous Frequency

≤±5%

Time Of Steady Frequency

≤3 seconds

Waving Rate Of Frequency

≤±0.5%

Controller

SmartGen/Mebay/Deep Sea/ComAp

Controller Parameter

● Volt

● oil pressure

● running time

● power

● current

● battery voltage

● frequency

● speed

● oil temperature

● power factor

● water temperature

●High efficient water cooled Cummins QSK50-G7 diesel engine.

●Radiator with pressure cap and drain point，Radiator 40°C max.

●Fully guarded engine-driven fan.

●Single bearing with brushless alternators (Class H, with AVR).

●Auto start control system with LCD show.

●Separate engine-driven battery charging alternator.

● 24V maintenance free starter battery and connecting cables.

●Battery charger provided.

● Electric speed control

●Spin on oil and fuel filters and dry type air filter element.

● Equipped with CHINT MCCB;ABB in Option

● Equipped with industrial silencer and flexible exhaust hose.

● Main line 3P circuit breaker.

●Fully welded steel skid base with lifting holes and fork lift legs.

●Heavy duty rubber anti-vibration mountings.

●Integral fuel tank with filler cap and gauge (≤650kVA).

● Rigorous factory test wiring with IEC standard.

● Design Comply to ISO8528/GB2820

● Absorber (Anti Instant Braking)

● Wide range of optional extra features available.

● User Manual, Packing List
