PARAMETER
Mass parameter: | |||
Kerb Weight(kg) | 9750 | Total Weight(kg) | 16000 |
Rated loading Weight(kg) | 6055 | Dimension(mm) | 8998×2490 ×3200 |
Chassis Parameter: | |||
Chassis Model | DFL1160BX | Tyre model | 9.00-20,9.00R20 |
Wheelbase (mm) | 5000 | Tread mm | 1815/1800 |
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2568 |
Approach angle,Departure angle | 20°/14° | Minimum Ground Clearance (mm) | 250 |
Engine parameter: | |||
Engine model | B190 33 | Manufacturer | Dongfeng Cummins Engine Co. , Ltd. |
Max. Power(kw) | 140/2400 | Max. Torque(N.m) | 550/1300-1800 |
Fuel | Diesel | Displacement(ml) | 5900 |
Spray specification: | |||
Tank Capacity(m³) | 8 | Spray width | 6000mm |
Hydraulic pump model | CBQ-F540 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
Controller | ZM-Ⅰ | Nozzles | 39 |
Burner | G20(Riello) | Asphalt pump | QGB450 |
Generator(Converter) | EC6500CX |
|
|
PERFORM\ANCE
1 Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep the
2 Heat Conducting Oil System:
a.The new Heat Conducting Oil System can heat asphalt and pump faster
b.Especially in use of spraying emulsified asphalt,speed up the heating efficiency and save fuel
3 Controller:
a.Control system is more friendly and easier to be operated.
b.Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
4 Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
5 Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption.
Overview
Quick Details
Applicable Industries:
Construction works
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine
Place of Origin:
Suizhou, China
Brand Name:
CHINLION
UNIQUE SELLING POINT:
Low Maintenance Cost
After-sales Service Provided:
Engineers available to service machinery overseas
Chassis model:
DFL1160BX
Max.total mass(KG):
16000
Engine Model:
B190 33
Rated Loading Weight(KG):
6055
Dimension(mm):
8998*2490*3200
Name:
bitumen sprayer
Tank capactiy:
8000L
Asphalt pump:
QGB450
Burner model:
G20(Riello)
After Warranty Service:
Video technical support
Local Service Location:
None
Supply Ability
Supply Ability
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
nude, surface injecting the wax
Port
SHANGHAI

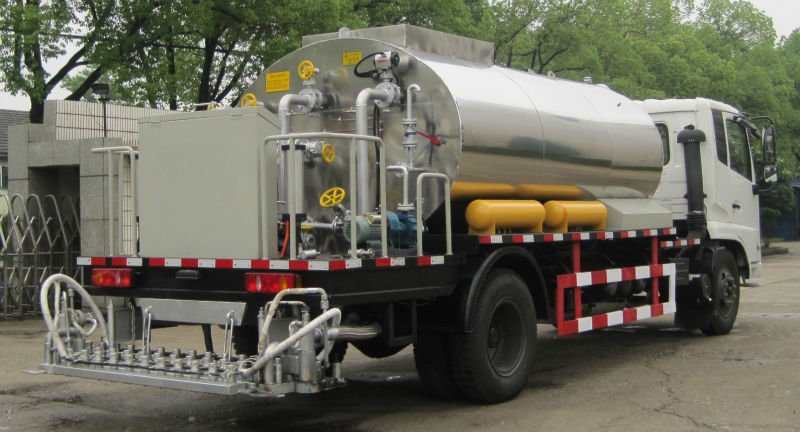

BITUMEN SPRAYER
| Price | $54,000.00-$55,000.00 |
| Brand Name | CHINLION |
| Model Number | CHL |
| Place of Origin | CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100UNITS |
| Delivery Detail | 30DAYS |
| Packaging Details | BULK,20GP,40HC,LCL |
