Product Description

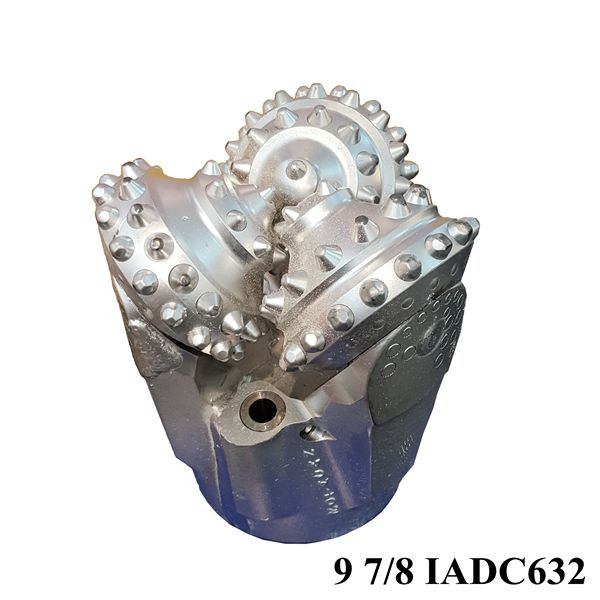

The TCI Tricone bits drilling for medium to hard rock formation.
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.
The hard formation TCI tricone bits can be used to drill hard and abrasive formation. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
Detailed Images
IADC
| WOB (KN/MM) (Bit Dia)
| RPM (r/min)
| Applicable Formations
|
116 117
| 0.35~0.8
| 150~80
| Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc. |
126 127
| 0.35~0.9
| 150~70
| Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,softshale.soft limestone,ect. |
136 137
| 0.35~1.0
| 120~60
| Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. |
216 217
| 0.4~1.0
| 100~60
| Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect. |
246 247
| 0.4~1.0
| 80~50
| Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect. |
417 437 447
| 0.35~0.9
| 150~70
| Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc. |
517 527
| 0.35~1.0
| 140~60
| Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect. |
537 547
| 0.45~1.0
| 120~50
| Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect. |
617 627
| 0.45~1.1
| 90~50
| Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect. |
637
| 0.5~1.2
| 80~40
| Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect. |
IADC Codes are designed to make it easier for drillers to describe what kind of rock bit
they are looking for to the supplier. Such as 12 1/4" IADC617
The first three digits classify the bit according to the formation it is designed to
drill and the bearing/seal design used.Bit Type and Hardness of Formation to be Drilled
First Digit:
1, 2, and 3 steel tooth bits (from softest to hardest).
4, 5, 6, 7, and 8 tungsten carbide insert bits (from softest to hardest).
Second Digit:
from softest (1) to hardest (9).
Third Digit:
Stand for bit feature as follows:
Open Bearing
Open Bearing, Air Cooled
Open Bearing with Gauge Protection
Sealed Roller Bearing
Sealed Roller Bearing wih Gauge Protection
Sealed Journal Roller Bearing
Sealed Journal Roller Bearing with Gauge Protection.
Packing & Delivery
Packing: wooden box
Shipping: by ship,by air,by train ect as your requirement.
Overview
Quick Details
Condition:
New
Warranty:
6 months
Applicable Industries:
Construction works , Energy & Mining, well, oil drilling
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Place of Origin:
China
Brand Name:
CHINLION
Type:
DRILL BIT
Machine Type:
Drilling Tool, Drilling Equipment/Tools
Material:
Carbide
Processing Type:
Forging
Use:
Well Drilling
Bearing Type:
Metal / Elastomer(Rubber) Sealed Bearing
Suitable Formation:
Soft, Medium Soft, Hard, Medium Hard, Very Hard
Tricone Bit Application:
Oil, Gas, Water Well, HDD, Mining, Foundation
Working Time:
100-120 Hours
Advantage:
High Speed Performance
Tricone Bit Teeth:
Tungsten Carbide Insert/Steel Tooth
Body Material:
Alloy Steel Afater Heat Treatment
Color:
Any Color
HS code:
82071990
Local Service Location:
None
Certification:
API
Supply Ability
Supply Ability
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box
Port
XIAMEN/TIANJIN
| Price | $1,250.00 |
| Brand Name | CHINLION |
| Model Number | THP/03 |
| Place of Origin | CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100UNITS |
| Delivery Detail | 30DAYS |
| Packaging Details | WOOD,LCL |
