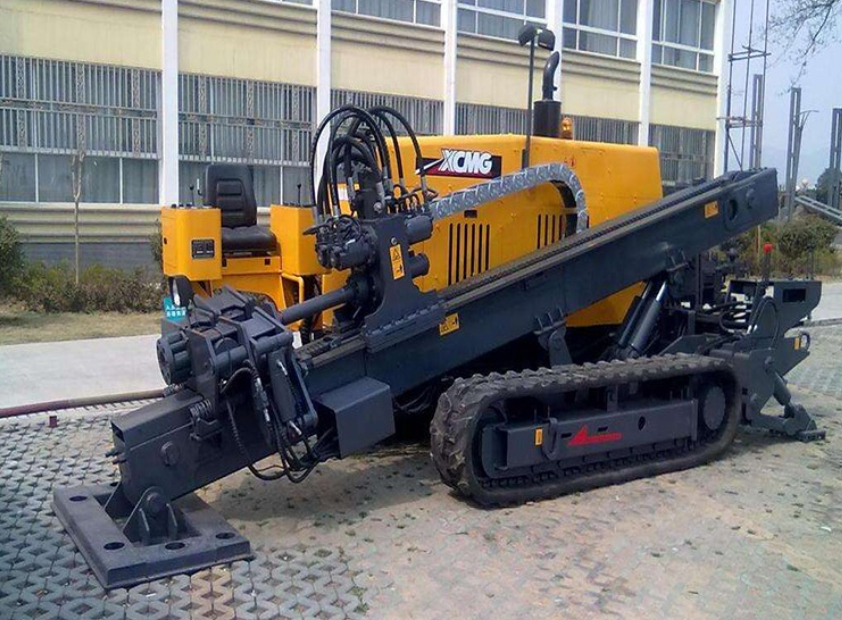

XZ320D horizontal directional drilling machine structure is compact, aesthetically pleasing, adopted a number of advanced control technology and the company's proprietary technology, main performance parameters and control technology reached the international advanced level.Hydraulic system, electrical system, transmission system choose brand name products at home and abroad, the main components such as high reliability.
Cummins (153KW) engine, 320kN of thrust-pull force, 12000N·m of Max.spindle torque, dual speed power head, self-propelled steel tracks chassis with rubber, floating clamp,high strength box-type drilling frame, rotatable control board,onboard 320L/min mud pump,machine transport can use container,attached is option menu.
Producr Show
Specification
Description
| Unit
| Parameter value
| ||
ENGINE
| China III
| Model
| QSB5.9-C210
| |
Rated Power
| kW /(r/min)
| 154 / 2200
| ||
China II
| Model
| 6BTAA5.9-C205
| ||
Rated Power
| kW /(r/min)
| 153/ 2200
| ||
Thrust-Pull
| Type
|
|
| Pinion and rack drive
|
Max thrust-pull force
|
| kN
| 320/320
| |
Max thrust-pull speed
|
| m/min
| 22
| |
Rotation
| Type
|
|
| Four motor
|
Torque
|
| N·m
| 12000
| |
Max spindle speed
|
| r/min
| 0~140
| |
Loader Crance
| /
|
|
| /
|
Max inclination angle
| °
|
|
| 20
|
Pipe
| Diameter × Length
|
| mm×mm
| Φ73×3000
|
Mud pump
| Max Flow rate
|
| L/min
| 320
|
Max pressure
|
| MPa
| 8
| |
Weight
| kg
|
|
| 10500
|
Top Selling
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining
Place of Origin:
Jiangsu, China
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas
ENGINE:
6BTAA5.9-C205
Pipe length:
3m
spindle speed:
140r/min
backreaming diameter:
d800mm
Supply Ability
Supply Ability
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Comply with export packaging requirements
Port
Any China port
| Price | $10,000.00 - $1,000,000.00/ Unit |
| Brand Name | XCMG |
| Model Number | XZ320D |
| Place of Origin | XUZHOU,CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100 |
| Delivery Detail | 30DAYS |
| Packaging Details | 20GP |
