Product Description

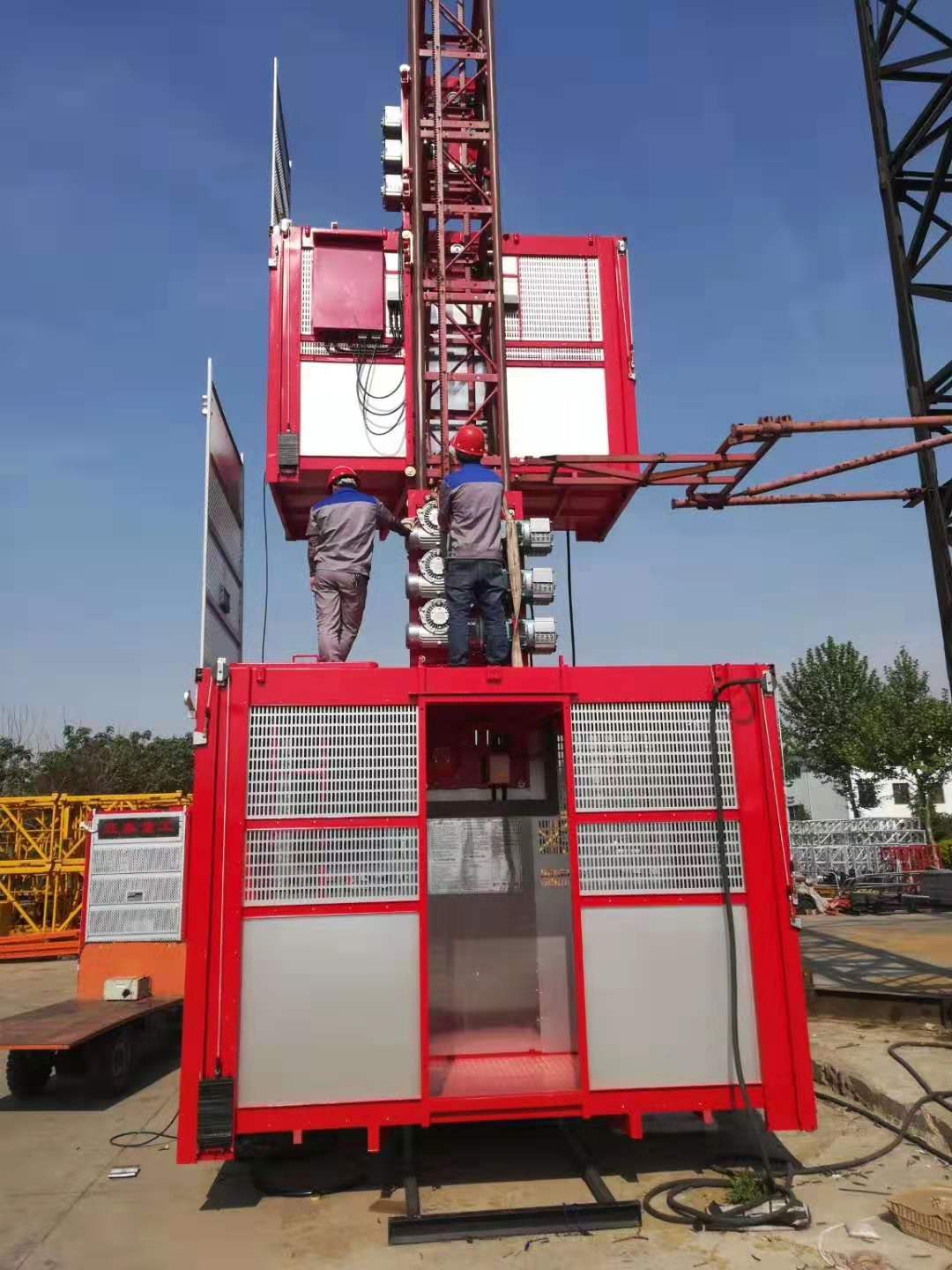

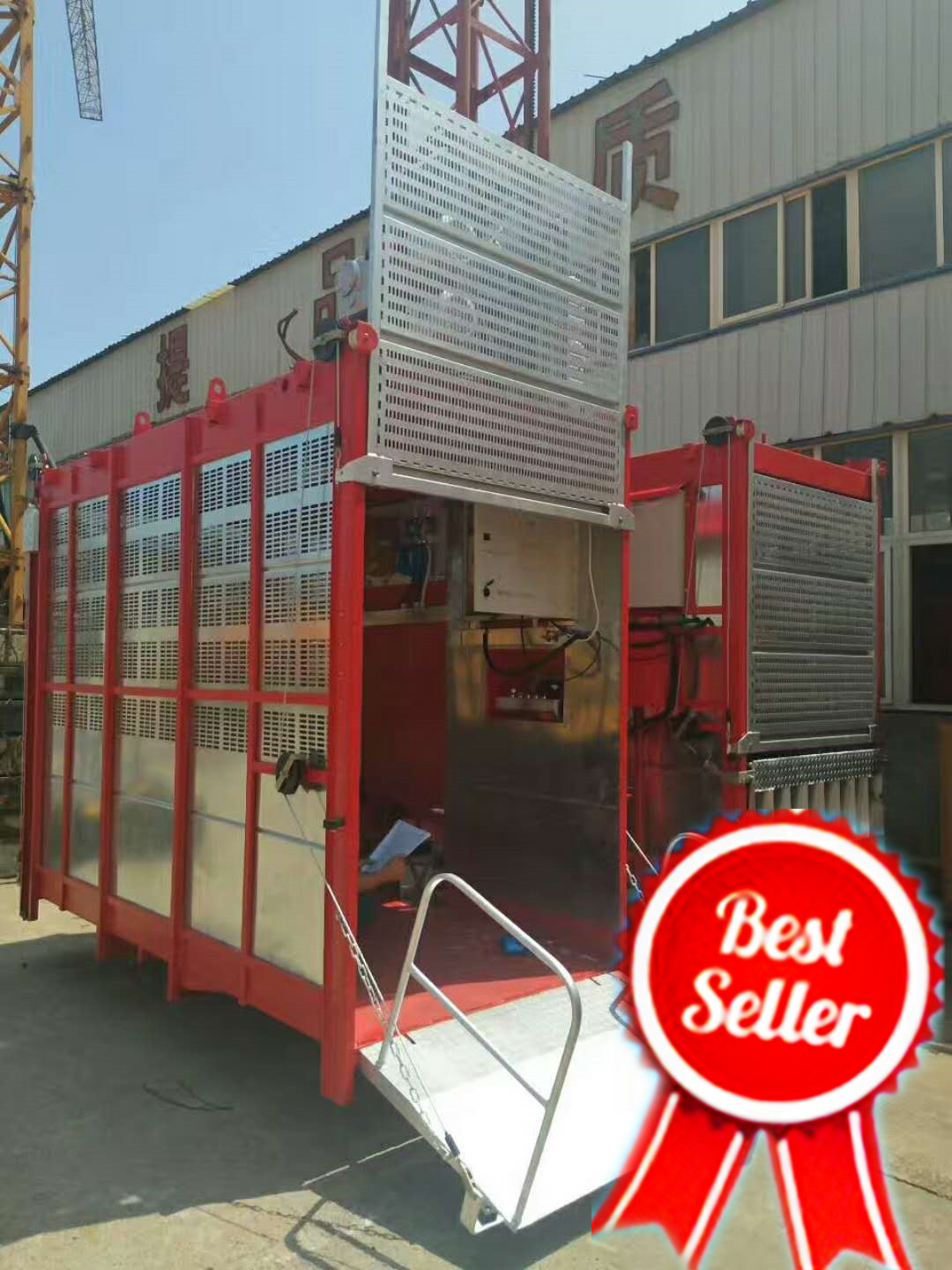

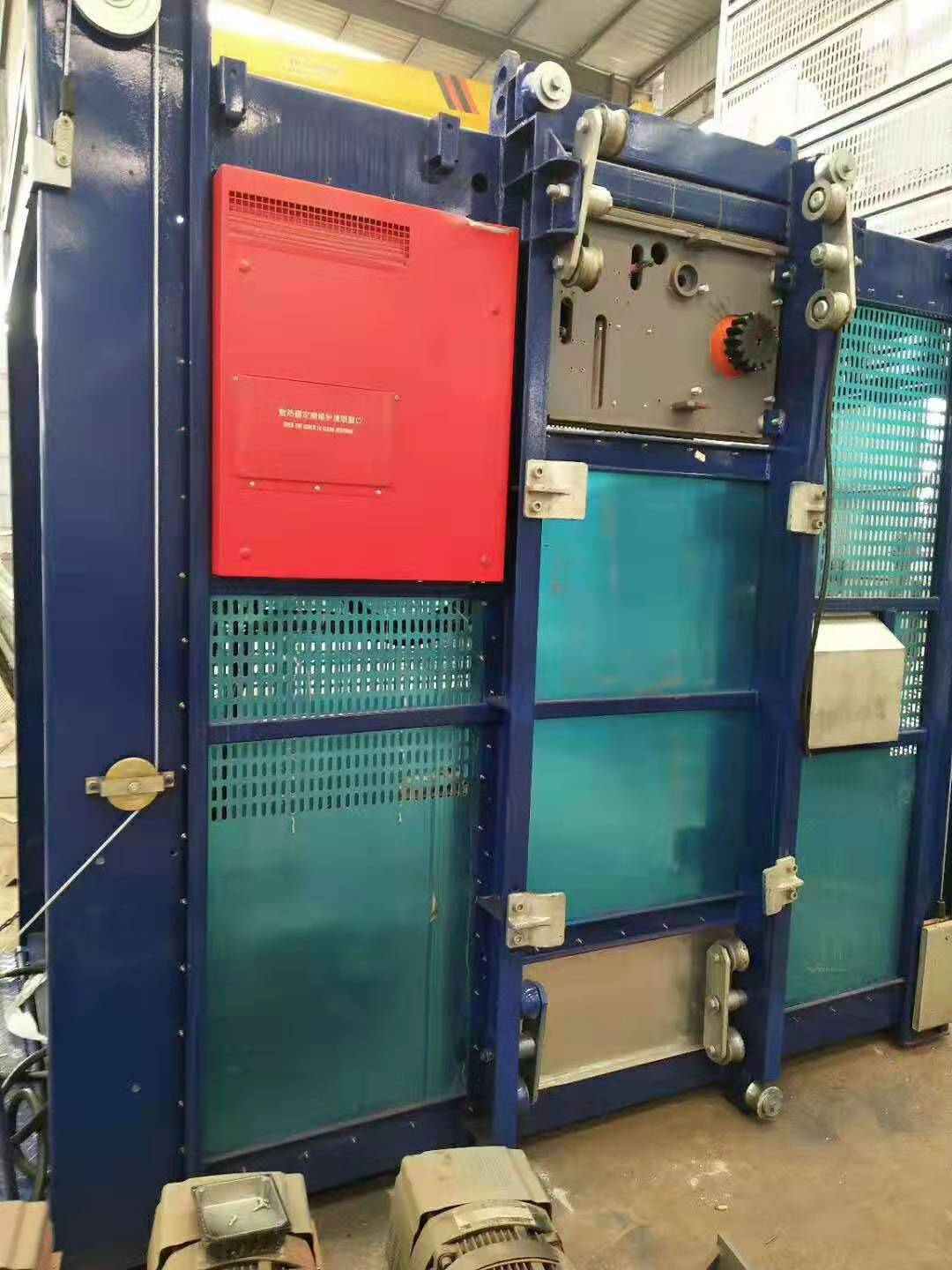

Product Display
Our Advantage
1.High quality of motor, low noise NORD Brand ,Schneider Control
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, customer without refueling
6.Selects the high quality gear reducer and anti dropping device

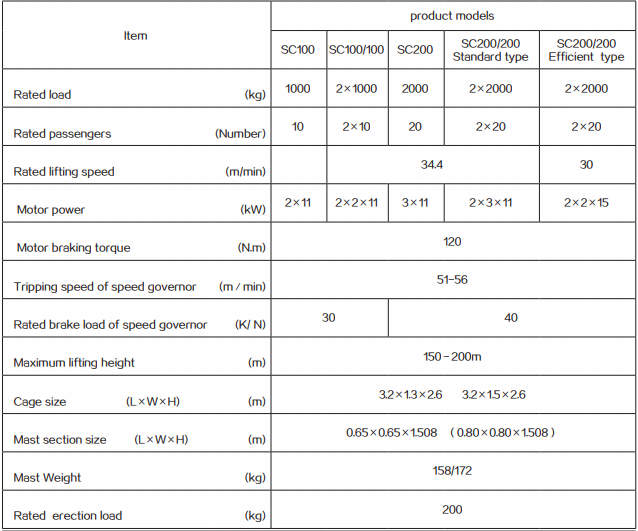

| Characteristics | Model | Rated Loading | Lifting Speed | Motor Power | |
| Double Cages | Low-speed | SC200/200D | 2×2000kg | 0-40m/min | 2×(3×11kw) / 2×(3 ×8.5kw) |
| SC100/100D | 2×1000kg | 0-40m/min | 2×(2×13kw) | ||
| Mid-speed | SC200/200Z | 2×2000kg | 0-60m/min | 2×(2×23kw) | |
| SC100/100Z | 2×1000kg | 0-60m/min | 2×(2×15kw) | ||
| Single Cage | Low-speed | SC200D | 2000kg | 0-40m/min | 3×11kw 3 ×8.5kw |
| SC100D | 1000kg | 0-40m/min | 2×13kw | ||
| Mid-speed | SC200Z | 2000kg | 0-60m/min | 2×23kw | |
| SC100Z | 1000kg | 0-90m/min | 3x23kw | ||
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining
Showroom Location:
None
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
CHINLION
Rated Loading Capacity(kg):
2000 * 2 Kg
Hoisting Speed:
33m/min
Max Lifting Height:
400m
Dimension(L*W*H):
3*1.5*2.2m
Loder Weight:
2000kgx2
Warranty:
1 Year
UNIQUE SELLING POINT:
High operating efficiency
Material:
G350 Steel
Hoisting Motor:
3*11kw
Electra Control System:
Schneider
Color:
Customized
Lift type:
Rack and pinion
Power Supply:
380V 50HZ or Customized
Max height:
400M with Reinforced Mast
Surface Treatment:
Hot Galvanized/Painting
Mast section:
650*650*1508(mm) Weight:146Kg Q345
Cage size:
3mx2.2mx1.5m
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
None
After-sales Service Provided:
Video technical support, Field installation, commissioning and training
Supply Ability
Supply Ability
35 Set/Sets per Week
Packaging & Delivery
Packaging Details
40HQ LOAD IN BULK
Port
QINGDAO
| Price | $21,300.00 |
| Brand Name | ZOOMLION |
| Model Number | SC200 |
| Place of Origin | CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100UNITS |
| Delivery Detail | 45DAYS |
| Packaging Details | 20GP |
