CHINLION CHL380 Mini skid steer loader like toro dingo
Engine:Briggs & Stratton Petrol Engine
• Tyre:Chevron tire
• Motor: Low speed high torque motors
• Hydraulics Pumps: Gear Pump
• Bucket:Plain
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-5.5km/h
• Size ( length *width *height):2206*1033*1205mm
• Bucket capacity:0.15cbm/200kg
• Operating weight:940kg
General description
CHI380 Mini skid steer loader like toro dingo is without doubt one of the most versatile pieces of construction equipment available on the market today. Skidsteers, and Mini skid steers with their compact size, maneuverability, and ability to easily switch among a huge range of different attachments makes them an invaluable tool.
The CHL380 Mini skid steer loader like toro dingo consists of a rigid frame with lift arms that are used to attach a wide variety of attachments for a variety of different jobs.
CHINLION CHL380 Mini skid steer loader like toro dingo Attachments
There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
Broad field-of-use.
It can be used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other industries.
OUR COMPANY work hard to ensure OUR LOADERS are easily serviceable.
CHINLION CHL380 Mini skid steer loader like toro dingo Spec Below
Engine | Rated Power | 17.1Kw (23HP) | ||
Rated Speed | 3600 rpm | |||
Noise | <=95Db | |||
Hydraulic system | Hydraulic Pressure | 17Mpa | ||
Cycle time | Raise | Dump | Lower | |
4.27s | 1.34s | 3.31s | ||
Load capacity | 200kg | |||
Bucket Capacity | 0.15cbm | |||
Max Lifting Force | 375kg | |||
Speed | 0-5.5km/h | |||
Total Weight | 890kg | |||
Tyre model | 18*6.5-8 |

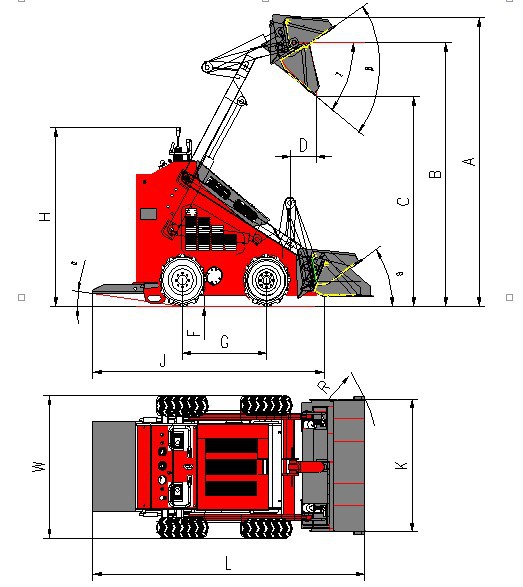

Item | Data |
Max Working Height (A) | 2143mm |
Max Pin Height (B) | 1884mm |
Max Dump Height (C) | 1488mm |
Dump Distance at highest point (D) | 348mm |
Bucket dump angle | 30degree |
Bucket collectiong angle | 25degree |
Departure angle | 11degree |
Total Height (H) | 1233mm |
Ground Clearance (F) | 118mm |
Wheelbase (G) | 636mm |
Length without bucket (J) | 1752mm |
Total Width (W) | 1160mm |
Bucket Width (K) | 1150mm |
Total Length (with bucket) (L) | 2206mm |
Turning Radius | 1307mm |
Overview
Quick Details
Condition:
New
Brand Name:
CHINLION
Place of Origin:
Shandong, China
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
2206mm*1033mm*1205mm
Rated Load:
200KG
Warranty:
12 MONTHES
After-sales Service Provided:
Engineers available to service machinery overseas
Certification:
CE GOST
Name:
CHINLION CHL280 Mini skid steer loader like toro dingo
Engine:
Briggs&Stratton petrol
Hose Power:
23HP
certification:
CE
color:
yellow
Bucket:
0.15cbm
weight:
940kg
load capacity:
200kg
Certificate:
CE GOST
HYSOON Mini skid steer loader attachment:
fork, bucket, blade, trencher, snow blower, tiller
Supply Ability
Supply Ability
200 Set/Sets per Month CHINLION CHL280 Mini skid steer loader like toro dingo
