Product Description
Specification
item | value |
Usage | Oil Well |
Applicable Industries | Energy & Mining |
Local Service Location | Egypt, Turkey, United States, Italy, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Kenya, Argentina, UAE, Colombia, Algeria, Romania, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan |
Showroom Location | Egypt, Turkey, United States, Italy, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | Motor, Vavle and pipe |
Condition | New |
Type | Rotary Drilling Rig |
Place of Origin | China |
Shandong | |
Brand Name | Kerui |
Model Number | 2-1/16" to 5-1/8" |
Certification | API Standard 53/API SPEC 16C |
Warranty | 1 Year |
After-sales Service Provided | Free spare parts, Video technical support, Field maintenance and repair service |
Product name | OFFSHORE PLATFORM MANIFOLD |
Nominal Diameter (inch) | 2-1/16" to 5-1/8" |
Working Pressure (Psi) | 2,000 to 15,000 psi |
Material Class | DD-NL to HH-NL |
Suit Temperature | K to X (-75 °F to 350 °F) |
Manufacture Standard | API Standard 53/API SPEC 16C |

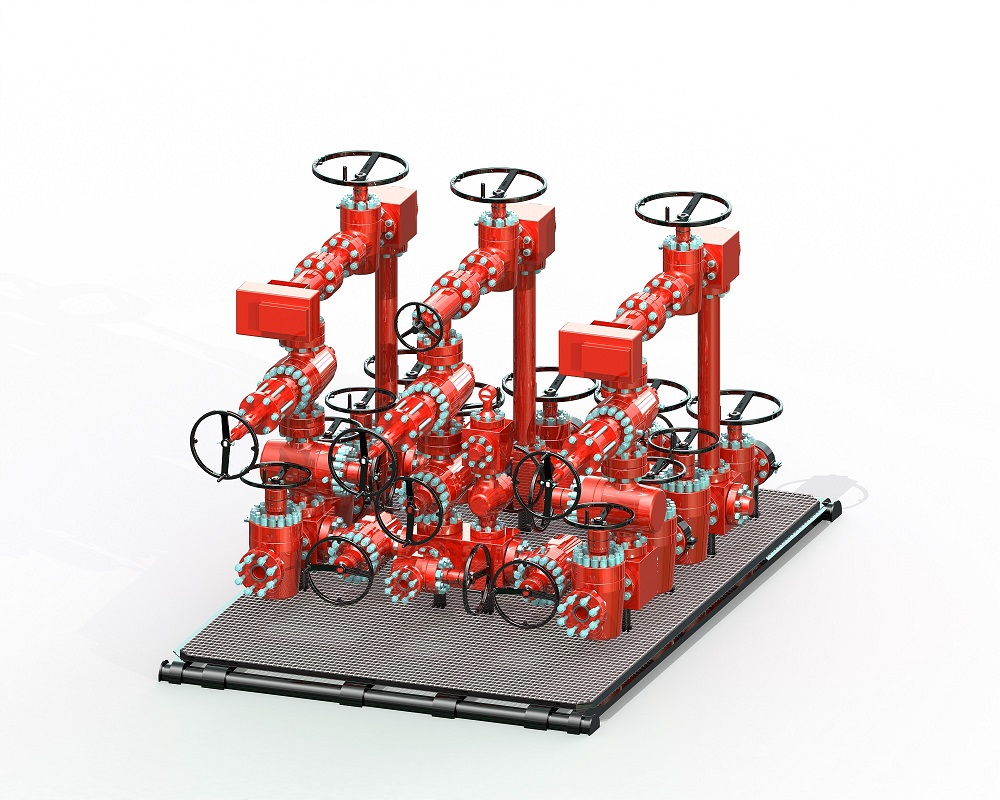

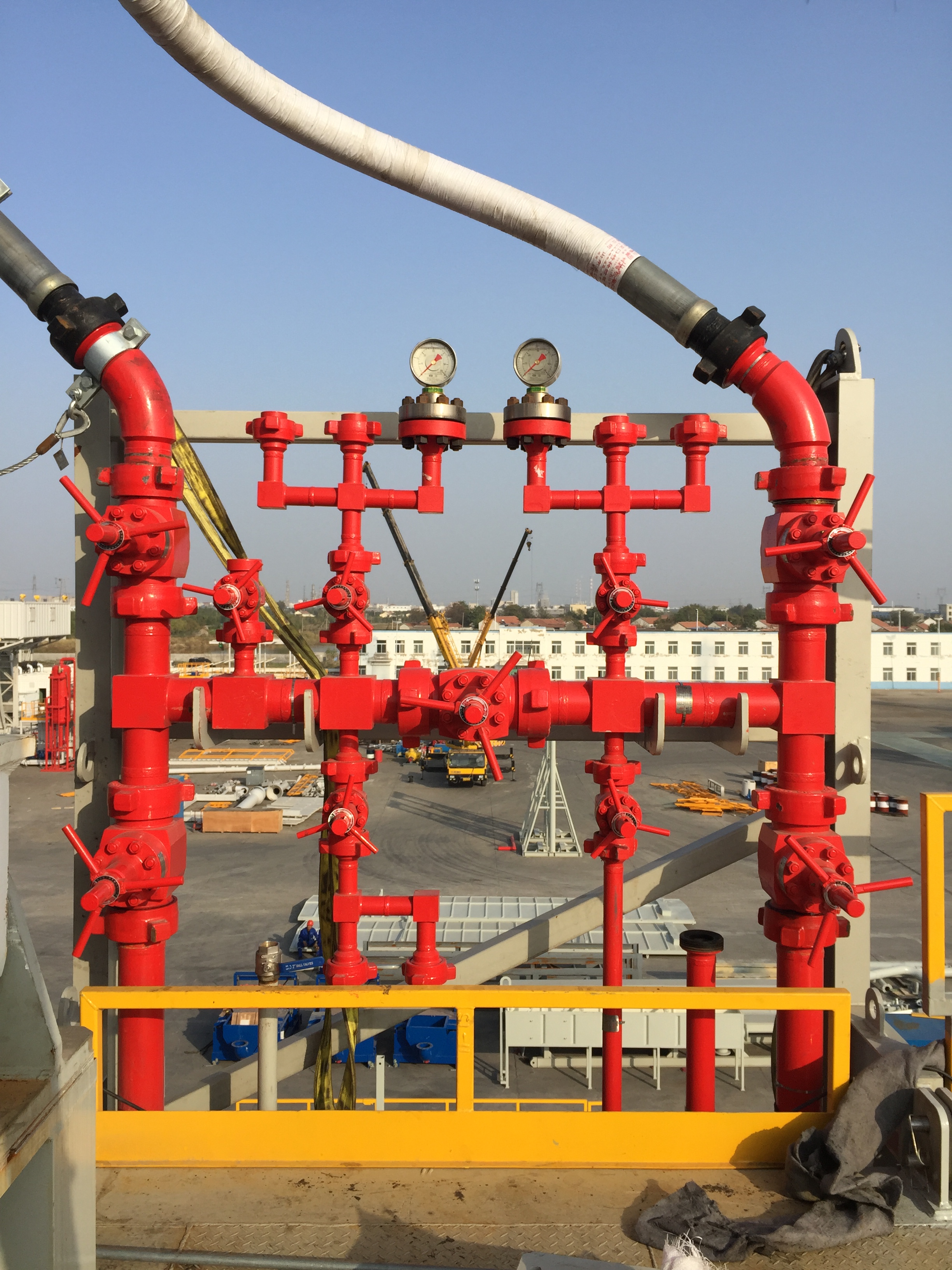

Offshore platform manifold is essential equipment in offshore drilling, which includes mud, cement, choke and kill manifold system, achieving mud circulation operation, cementing operation of offshore drilling rig and well control operations suck as choke, kill well, blow off and etc. Due to the limited space of the offshore platform, offshore manifold is always designed as a multifunctional vertical manifold with compact structure. Manifold configuration can be customized based customers’ space and functional requirements.
Design Feature
1.Designed and manufactured per API Standard 53/API SEPC 16C
2.Core components (including gate valve, choke valve,check valve, cross and etc.) are manufactured per API 6A and are strictly designed, machined, assembled and inspected by experienced personnel. It can be designed to be remotely operated through hydraulic gate valves, choke valves and check valves
3.Compact structure with rational layout, integrated with multifunctional system, which enable the space saving in the offshore platform
4.Various specifications of platform manifold can be produced per API 6A specification. Customized design based on customers requirements is also available upon request
Overview
Quick Details
Usage:
Oil Well
Applicable Industries:
Energy & Mining
Showroom Location:
Egypt, Turkey, United States, Italy, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan, Malaysia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Motor, Vavle and pipe
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Shandong, China
Brand Name:
CHINLION
Model Number:
2-1/16" to 5-1/8"
Weight:
1220 KG
Warranty:
1 Year
Product name:
OFFSHORE PLATFORM MANIFOLD
Nominal Diameter (inch):
2-1/16" to 5-1/8"
Working Pressure (Psi):
2,000 to 15,000 psi
Material Class:
DD-NL to HH-NL
Suit Temperature:
K to X (-75 °F to 350 °F)
After-sales Service Provided:
Free spare parts,Video technical support
Manufacture Standard:
API Standard 53/API SPEC 16C
Supply Ability
Supply Ability
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard exporting package
Port
Qingdao or Tianjin
| Price | $600,000.00 |
| Brand Name | CHINLION |
| Model Number | Customized logo |
| Place of Origin | CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100UNITS |
| Delivery Detail | 30DAYS |
| Packaging Details | 40HC |
