Oilfield API Drilling Mud Pump for Drilling Rig

Overview

Quick Details

Brand Name:

KERUI

Condition:

New

Warranty:

3 years

Applicable Industries:

Energy & Mining

Showroom Location:

Peru, Indonesia, India, Russia, Kenya, Algeria, Uzbekistan, Tajikistan

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

New Product 2020

Warranty of core components:

1.5 years

Core Components:

Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor

Product Name:

Oilfield API Drilling Mud Pump for Drilling Rig

Application:

Oilfield

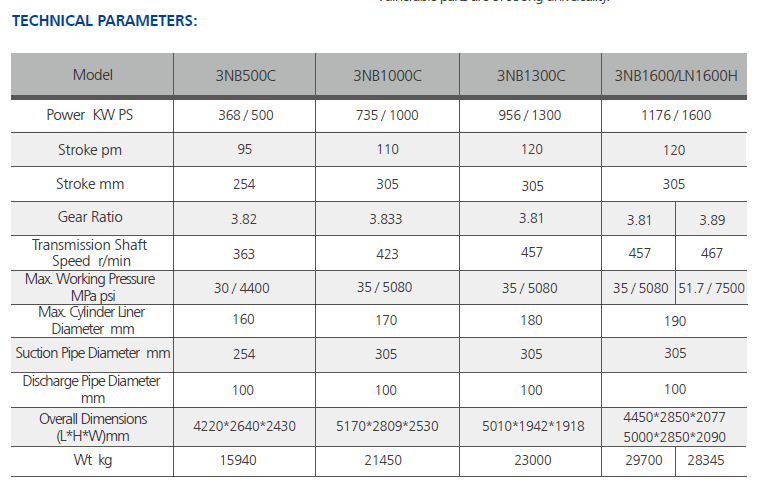

Model:

3NB500C,3NB1000C,3NB1300C,3NB1600/LN

Gear Ratio:

3.82~3.89

Usage:

Drilling Mud Pump Valves Assy

Max. Liner (in/mm):

160~190

Max. Pressure:

10Mpa 4400psi

Stroke Length (in/mm):

254,305,

Discharge Outlet Dia. (mm):

100

Suction Inlet Dia. (mm):

254

Supply Ability

Supply Ability

10000 Set/Sets per Year

Packaging & Delivery

Packaging Details

As required

Port

Qingdao, Tianjin, Shanghai

Picture Example:

Product Description

 Oilfield API Drilling Mud Pump for Drilling Rig

Product Features:

Power End

• The Shell is of welded-steel plate structure, the internal stress is relieved after welding.
• The transmission gear of power end adopting involute tooth is of steady operation, high efficiency and long service life.
• The crankshaft is hollow integral casting.
• The power end lubrication method is splash lubrication.

Fluid End

• Suction and discharge flanges conform to the ASA and API Spec;
• Adopting clamp connection between piston rod and crosshead extension rod, which can realize fast assembly and disassembly.
• The bottom of the value bore has a shoulder to prevent the valve seat down.
• The pistion and cylinder liner are cooler and lubricated by independent spray pump with long service life.
•
• Vulnerable parts are of strong universality.
