XCMG Official Truck Mounted Crane SQ8SK3Q China New 8 Ton Hydraulic Telescopic Boom Truck Mounted Crane.
1. Throttle Control System Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work. 2. End position automatic hook device Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving. 3. Hoisting overwinder device If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope. 4. Slewing locking device Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying. 5. Dual pump converging The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.
Specification
Model | SQ8SK3Q | Unit | |||
Max Lifting Capacity | 8000 | kg | |||
Max Lifting Moment | 20 | T.M | |||
Recommend Power | 28 | kw | |||
Max Oil Flow of Hydraulic System | 55 | L/min | |||
Max Pressure of Hydraulic System | 27 | MPa | |||
Oil Tank Capacity | 160 | L | |||
Rotation Angle | All Rotation | ||||
Crane Weight | 3300 | kg | |||
Installation Space | 1200 | mm | |||
SQ8SK3Q Lifting capability diagram | |||||
Working radius (m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
Lifting capacity (kg) | 8000 | 4400 | 2500 | 1750 | 1100 |

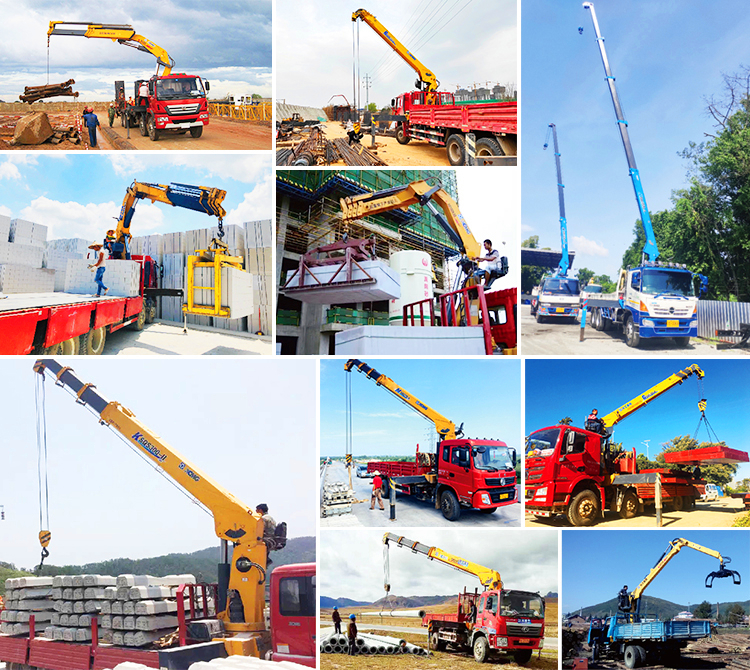

Product Show

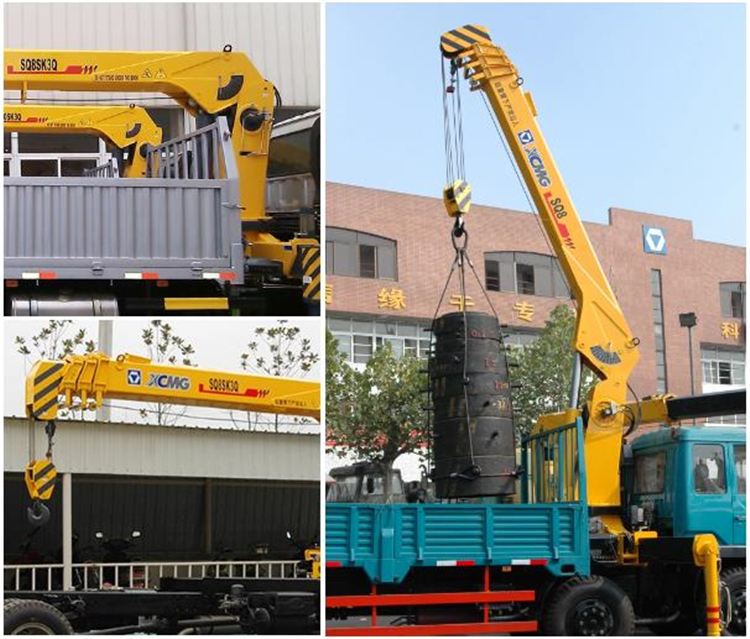

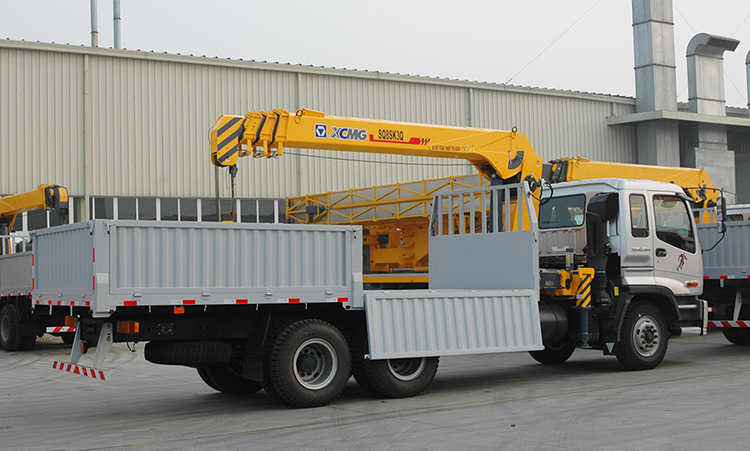

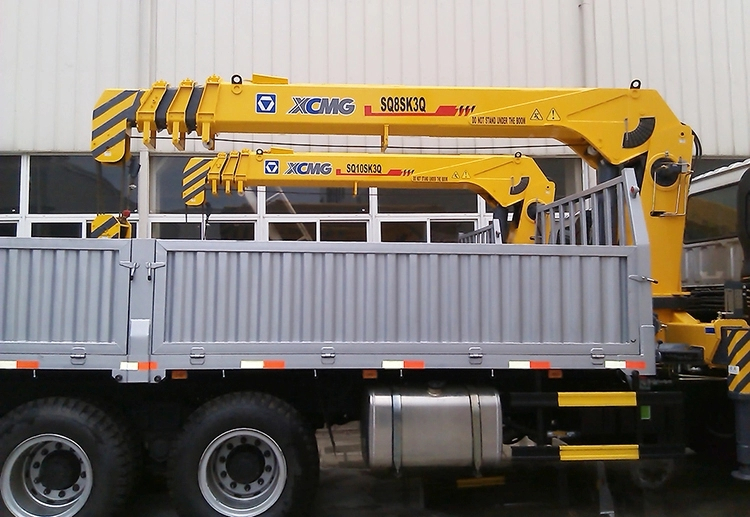

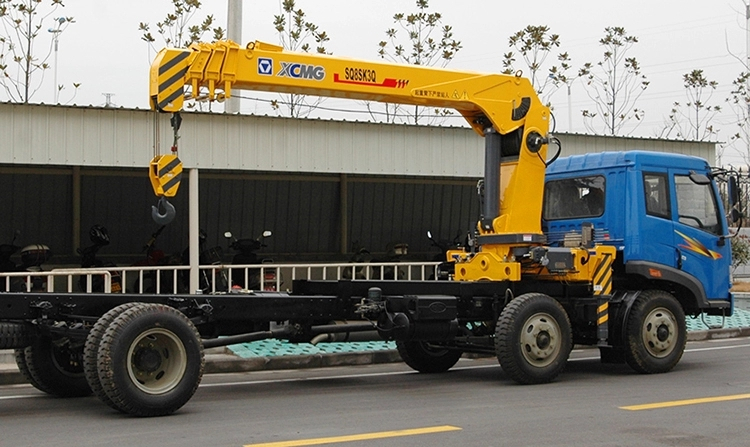

Details Images
Overview
Quick Details
Feature:
TRUCK CRANE
Showroom Location:
United States, Brazil, India, Russia
Condition:
New
Application:
Construction
Rated Loading Capacity:
8 Ton
Rated Lifting Moment:
20T.M
Max. Lifting Height:
13.2m
Span:
2280~5100mm
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Warranty:
1 Year
Hydraulic Cylinder Brand:
Top Brand
Hydraulic Pump Brand:
Top Brand
Hydraulic Valve Brand:
Top Brand
Engine Brand:
HANGFA
UNIQUE SELLING POINT:
Environmental, Long lifetime,Energy-saving,Large power engine
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:
Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Recommend Power:
28kw
Oil Tank Capacity:
160L
Applicable Industries:
Manufacturing Plant, Farms, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Certification:
CE/ISO9001
Supply Ability
Supply Ability
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Comply with Export Packaging Requirements
Port
Any Port of China
| Price | $1,000,000.00 |
| Brand Name | XCMG |
| Model Number | SQ8SK3Q |
| Place of Origin | CHINA |
| Min.Order Quantity | 1 |
| Payment Terms | T/T |
| Supply Ability | 100UNITS |
| Delivery Detail | 30DAYS |
| Packaging Details | BULK VESSEL,RORO VESSEL |
