High drilling capacity XRL100 32ton Rotary Drilling Rig with 460kN.m maximum output torque
Product Description

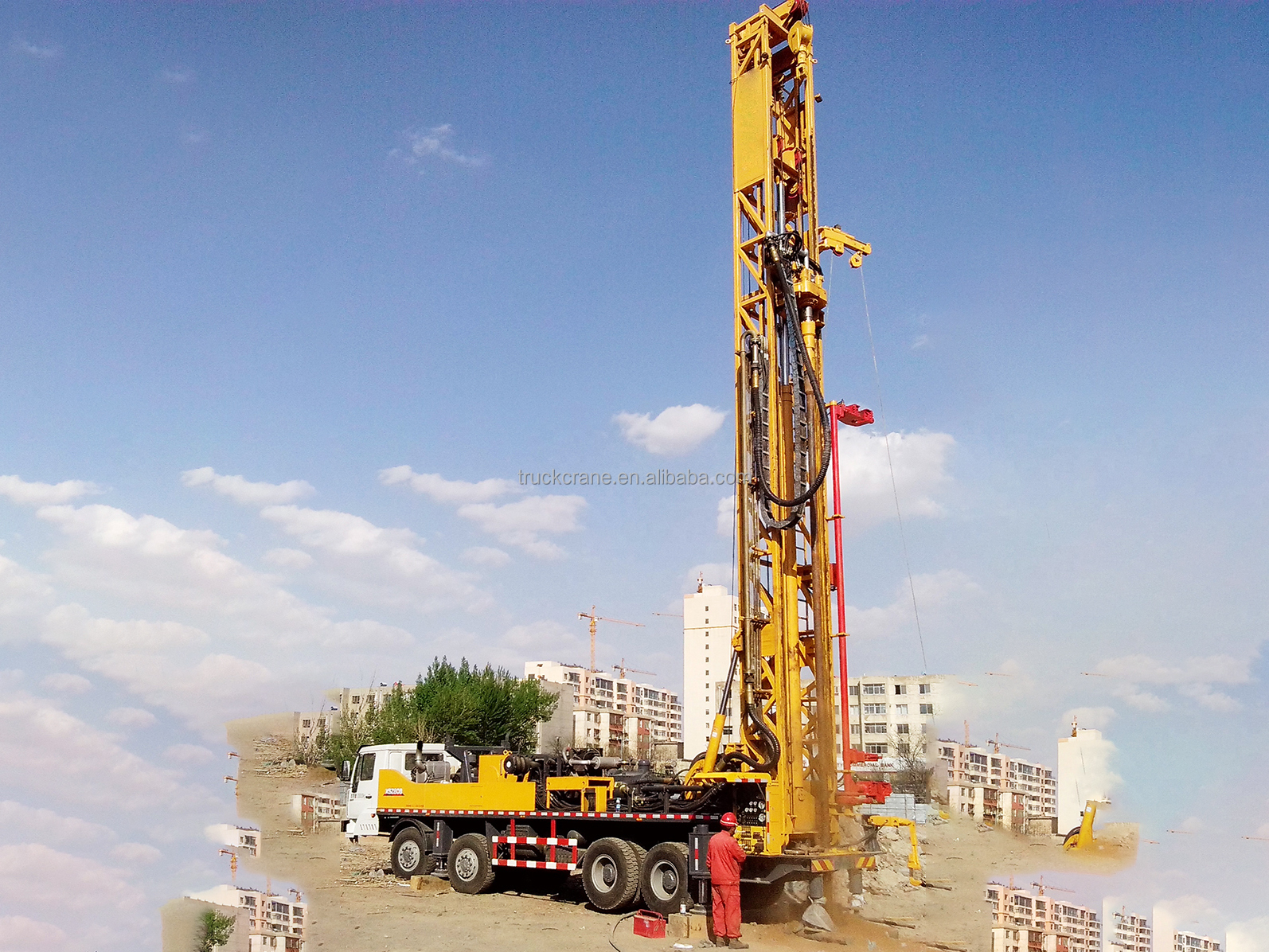

The equipment adopt the wheel type chassis,can be transported with drill rod,made the transportation easily and economically;
The type A leg make the equipment operate easily,and improved the ability of anti-distortion;
With the hydraulic pressure system adopted the technique of load sensor,which can increase the efficiency of hydraulic system and save energy;
The double protection system of aboard rotary make the construction more safer;
The patented parallelogram articulated structure actuailizes a wider work rang.The highly strengthened box-type steel structure design makes the mast of highly-righly and anticontored,therefore the drill accuracy is heightened;
Standard centralized lubricating system,allowing easier maintenance.
 |
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
Philippines, Brazil, Peru, Mexico, Thailand, Morocco, Kenya, Argentina, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Nigeria, Malaysia
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Jiangsu, China
Usage:
Coal
Dimension(L*W*H):
1701*4500*3660mm
Weight:
32 KG
Warranty:
1 Year
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Engine, Gearbox
Key Selling Points:
Flexible Manufacturing
Drilling Diameter:
300mm
Drilling Depth:
Max.500m
Efficiency:
100KN.M
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
NUDE PACKAGE
